Identyfikacja wariantu#

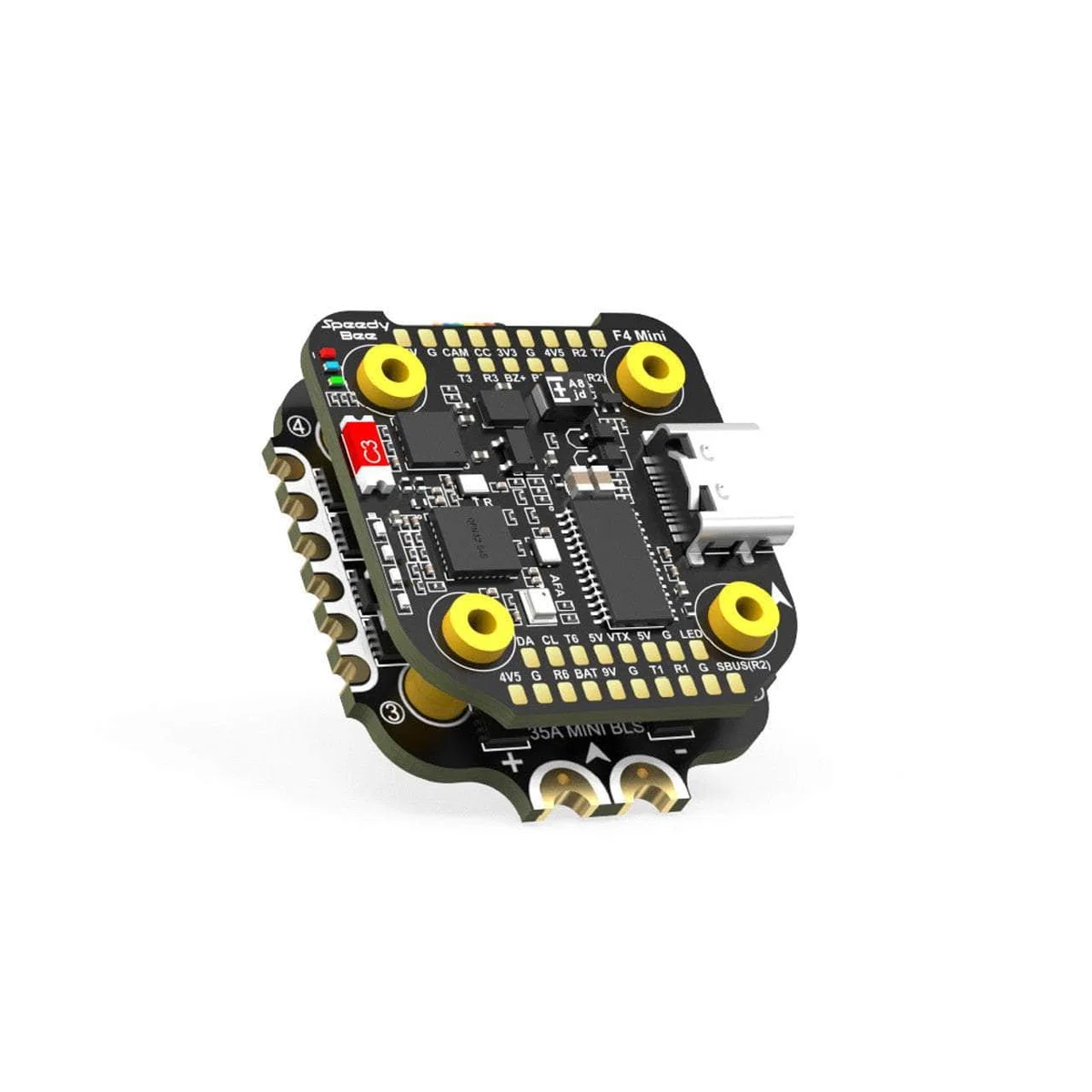

Nazwa modelu: SpeedyBee F4 Mini 3-6S 20x20 Stack/Combo (F405 FC / 35A 8Bit 4in1 ESC)
MPN producenta: —
SKU podane przez sklep: 21075
Typ produktu w katalogu sklepu: Stack
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | RunCam |
| Barometr | Built-in |
| Pamięć logów / blackbox | NOT Supported. Please connect to the Betaflight configurator on the PC to do blackbox analysis. |
| Wymiary | 32mm(L) x 35mm(W) x 14.2mm(H) |
| Firmware | NOT Supported. Please connect to the Betaflight configurator on the PC to do FC firmeare update |
| Obsługiwane firmware | Firmware: BLHeli_S J-H-40 |
| Target firmware | Firmware Target Name: SPEEDYBEEF405MINI |
| Pamięć Flash MCU | Blackbox: 8MB Onboard Flash |
| IMU na płytce | IMU(Gyro): ICM42688PUSB Port Type: Type-C |
| Magnetometr | I2C: Supported. DA & CL pads on front side. Used for magnetometer, sonar, etc |
| Masa | 13.5g |
| Główny mikrokontroler | STM32F405 |
| Protocols | DSHOT300/600 |
| Liczba UART | 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6 |
| Złącze USB | 4.5V Output: Supported. Designed for radio receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| RaceDayQuads | — | 110,99 USD |
