Identyfikacja wariantu#

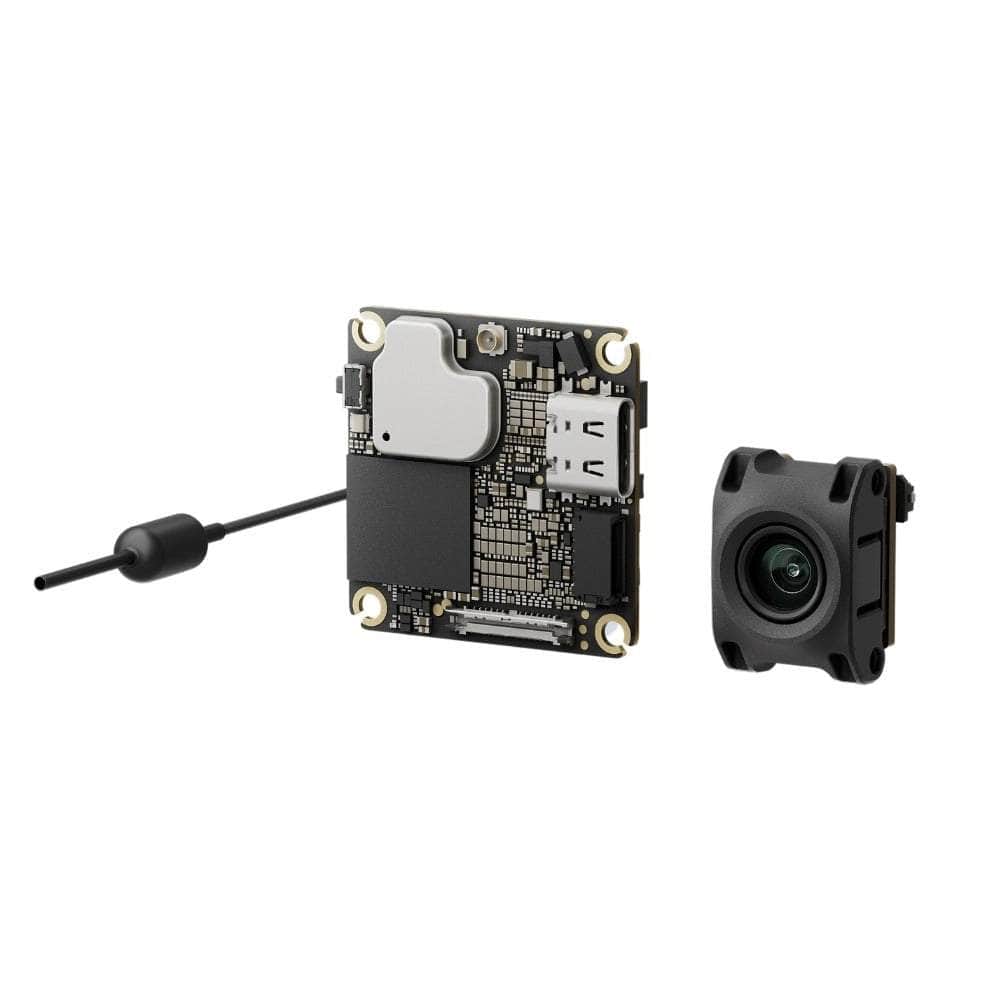

Nazwa modelu: DJI O4 Air Unit
MPN producenta: —
SKU podane przez sklep: 22794
Typ produktu w katalogu sklepu: Camera VTX
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | DJI |
| Channels | Auto Mode and Manual Mode Supported With DJI Goggles 3 or DJI Goggles N3: 60 MHz: 1 channel 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels With DJI Goggles 2 or Goggles Integra: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels |
| Dimensions mm | Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Mounting Pattern: 25.5×25.5 mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Antenna: 80 mm |
| Firmware | Flight control firmware must support the SBUS protocol to use the DJI FPV Remote |
| Frequency band | 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. |
| Input voltage v | 3.7-13.2 V |
| Mass g | Approx. 0.75g |
| Operating temperature c | -10°C to 40°C |
| Protocols | Flight control firmware must support the SBUS protocol to use the DJI FPV Remote |
| Video system | MP4 |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| RaceDayQuads | — | 139,99 USD |
