Identyfikacja wariantu#

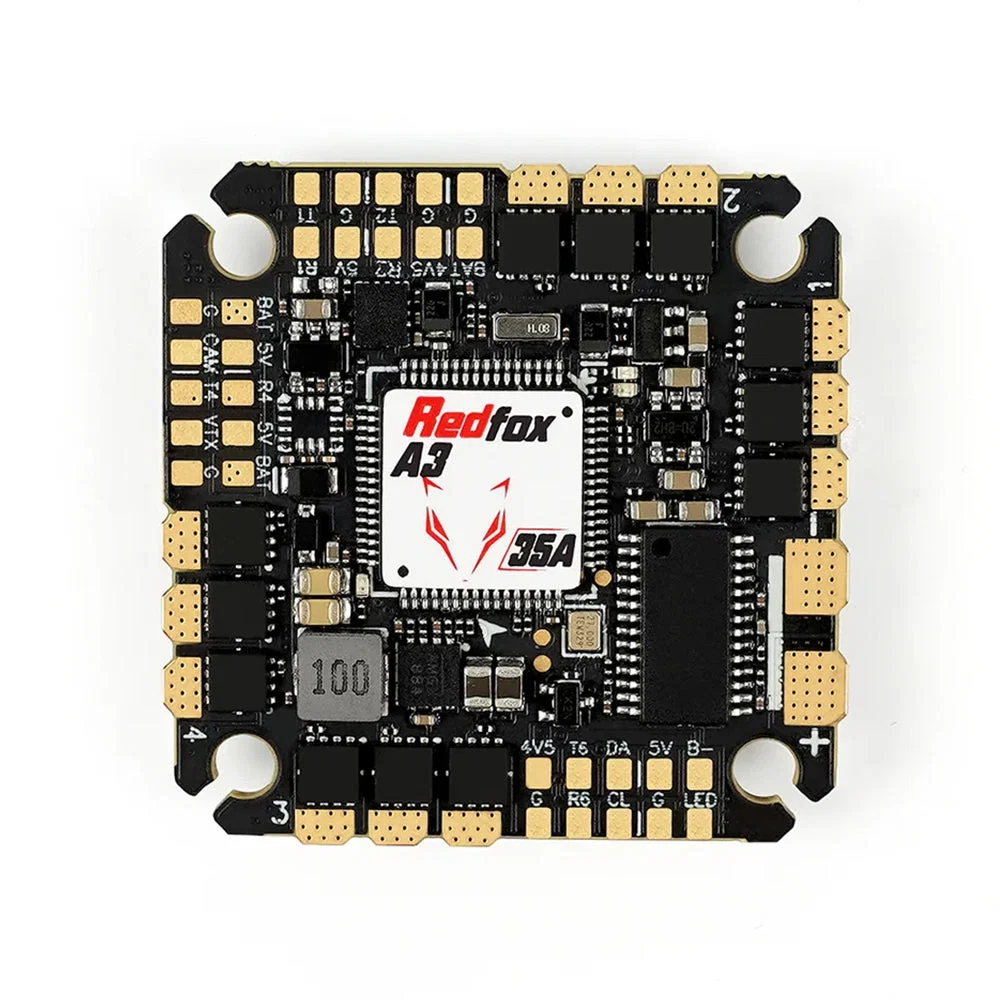

Nazwa modelu: Sub250 Redfox A3 F722 35A/45A 4in1 AIO Flight Controller for 2 to 3.5 inch Drones - Choose Version
MPN producenta: —
SKU podane przez sklep: N7-12708-35A
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: 35A
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Sub250 |
| Barometr | Built-in |
| Taktowanie rdzenia | Reliable and durable BLHeli_32 35A/45A ESC supports up to 128khz PWM frequency. |
| Connector | Supported |
| Wymiary | 33.5mm(L) x 33.5mm(W) x 6.45mm(H) ,1.6mm Board Thickness |
| Firmware | SUB250REDFOX722AIO |
| Obsługiwane firmware | ESC Firmware: BLHeli_32 |
| Target firmware | Firmware Target Name: SUB250REDFOX722AIO |
| IMU na płytce | ICM42688-P |
| Interface | Independently designed DJI 6PIN interface, directly connected to DJI digital video transmission system. |
| Masa | Weight：8.7g |
| Główny mikrokontroler | STM32F722 |
| Rozstaw montażowy | Ultra-light weight of 8.7g, 25.5mmx25.5mm M3 mounting holes, suitable for most frames on the market. |
| Protocols | Dshot300, Dshot600 |
| Liczba UART | 6 sets (UART1, UART2, UART3 for Digital VTX SBUS receiver, UART4, UART5 for ESC telemetry, UART6) |
| Złącze USB | USB Port Type: SH1.0 5PIN to Type-C |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | 35A | 101,99 USD |
