Identyfikacja wariantu#

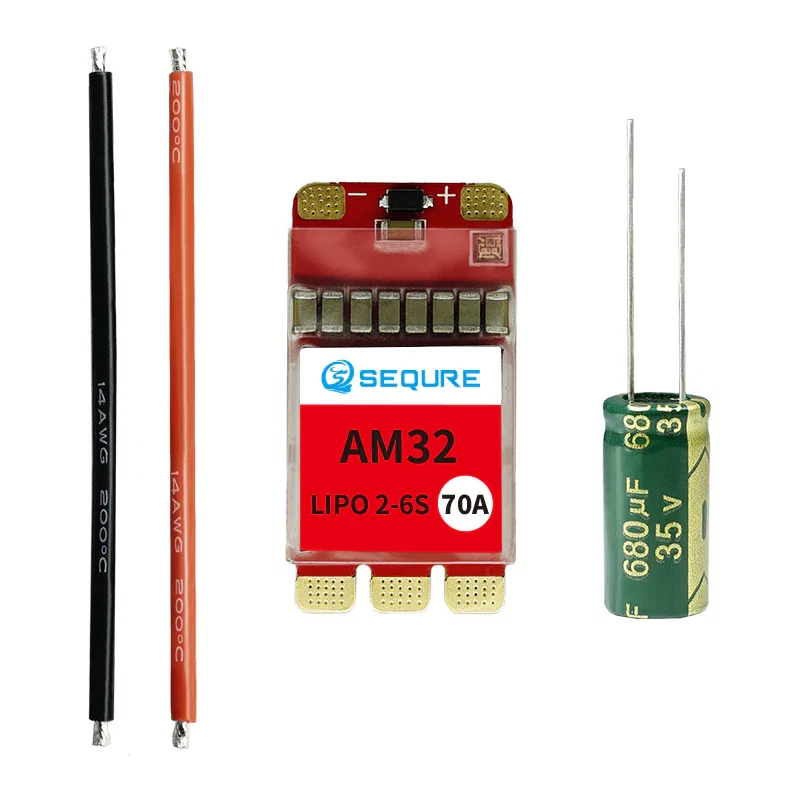

Nazwa modelu: Sequre SQESC 2670 2-6S 70A AM32 ESC for X-Class/Cinelifter Drone Airplane RC Car
MPN producenta: —
SKU podane przez sklep: K6-13583
Typ produktu w katalogu sklepu: Electronic Speed Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Sequre |
| Typ BEC | BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESCs more extensive and flexible. |
| Prąd ciągły deklarowany | PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably. |
| Mikrokontroler | Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency. |
| Protocols | The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot. |
| Telemetria | Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings. |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 38,99 USD |
