Identyfikacja wariantu#

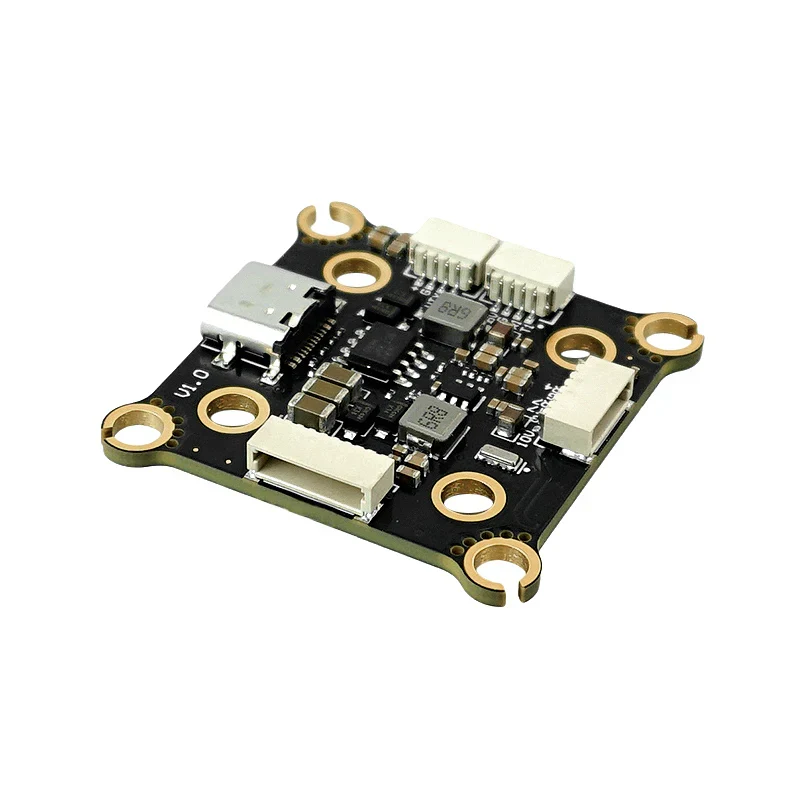

Nazwa modelu: Sequre H743 V2 4-8S ICM42688P Dual BEC Flight Controller - 20x20mm / 30x30mm
MPN producenta: —
SKU podane przez sklep: M4-13683
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Sequre |
| Barometr | BMP280 |
| Liczba magistral CAN | It can control up to 8 motors, easily constructing X8. |
| Taktowanie rdzenia | Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response. |
| Connector | Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly. |
| Wymiary | 36.5x36.5x6mm |
| Firmware | SEQUREH7V2 |
| Obsługiwane firmware | Firmware: SEQUREH7V2 |
| IMU na płytce | ICM-42688-P |
| Napięcie zasilania modułu | 4-8S Lipo |
| Masa | 7.3g |
| Główny mikrokontroler | STM32H743 |
| Rozstaw montażowy | Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc. |
| Liczba UART | 6 |
| Złącze USB | Type-C |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 68,99 USD |
