Identyfikacja wariantu#

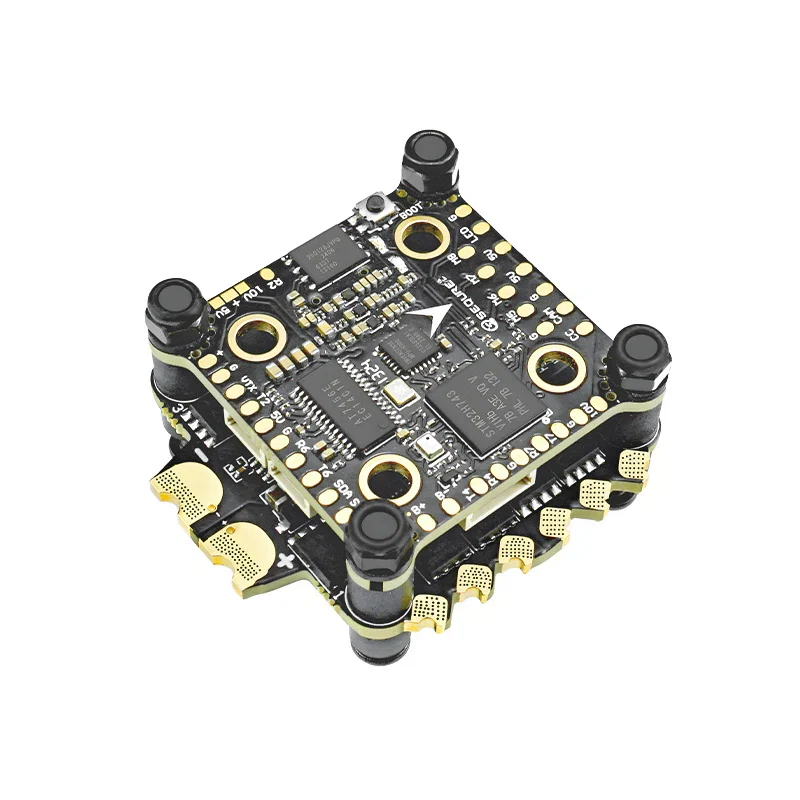

Nazwa modelu: Sequre H743 & E70 G2 4-8S Stack H743 MPU6000 Flight Controller and 70A BL32 128K 4in1 ESC - 30x30mm
MPN producenta: —
SKU podane przez sklep: G4-13726
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Sequre |
| Barometr | (3) SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data. |
| Liczba magistral CAN | (5) It can control up to 8 motors, easily constructing X8. |
| Taktowanie rdzenia | (6) PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem. |
| Connector | (6) Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage,allowing the DJI O3 and analog VTX to plug in for use directly. |
| Wymiary | 45.5*42.5*16mm |
| Firmware | (1) STM32G071 high-performance processor, support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A. |
| Obsługiwane firmware | (1) STM32G071 high-performance processor, support BLHeli_32 | AM32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A. |
| IMU na płytce | (2) Adopts MPU6000 gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system. |
| Masa | 33g |
| Główny mikrokontroler | (1) Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response. |
| Rozstaw montażowy | (7) Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc. |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 187,99 USD |
