Identyfikacja wariantu#

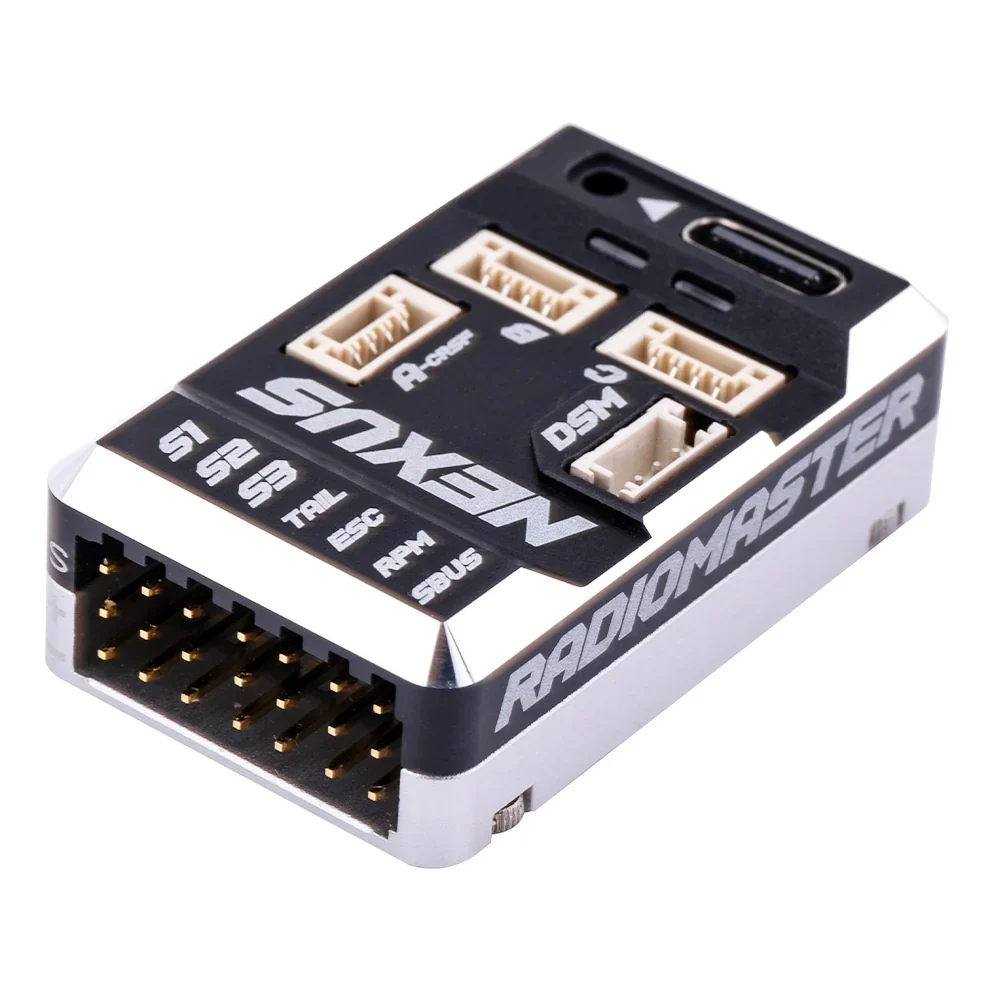

Nazwa modelu: RadioMaster Nexus Helicopter Flybarless Control Unit
MPN producenta: —
SKU podane przez sklep: C4-13428
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | RadioMaster |
| Barometr | SPL06-001 |
| Liczba magistral CAN | Built-in Black Box: A large 128MB of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment |
| Taktowanie rdzenia | Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR |
| Connector | 1 * JST-GH to Servo Plug (dupont 3 pin connector) |
| Wymiary | The NEXUS measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters |
| Firmware | Rotorflight 2.0 |
| Obsługiwane firmware | Firmware: Rotorflight 2.0 |
| Pamięć Flash MCU | 128MB (W25N01GVZEIG) |
| IMU na płytce | Gyro (IMU): ICM-42688-P |
| Interface | The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface |
| Masa | 16.8g |
| Główny mikrokontroler | STM32F722RET6 |
| Liczba UART | 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3] |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 99,99 USD |
