Identyfikacja wariantu#

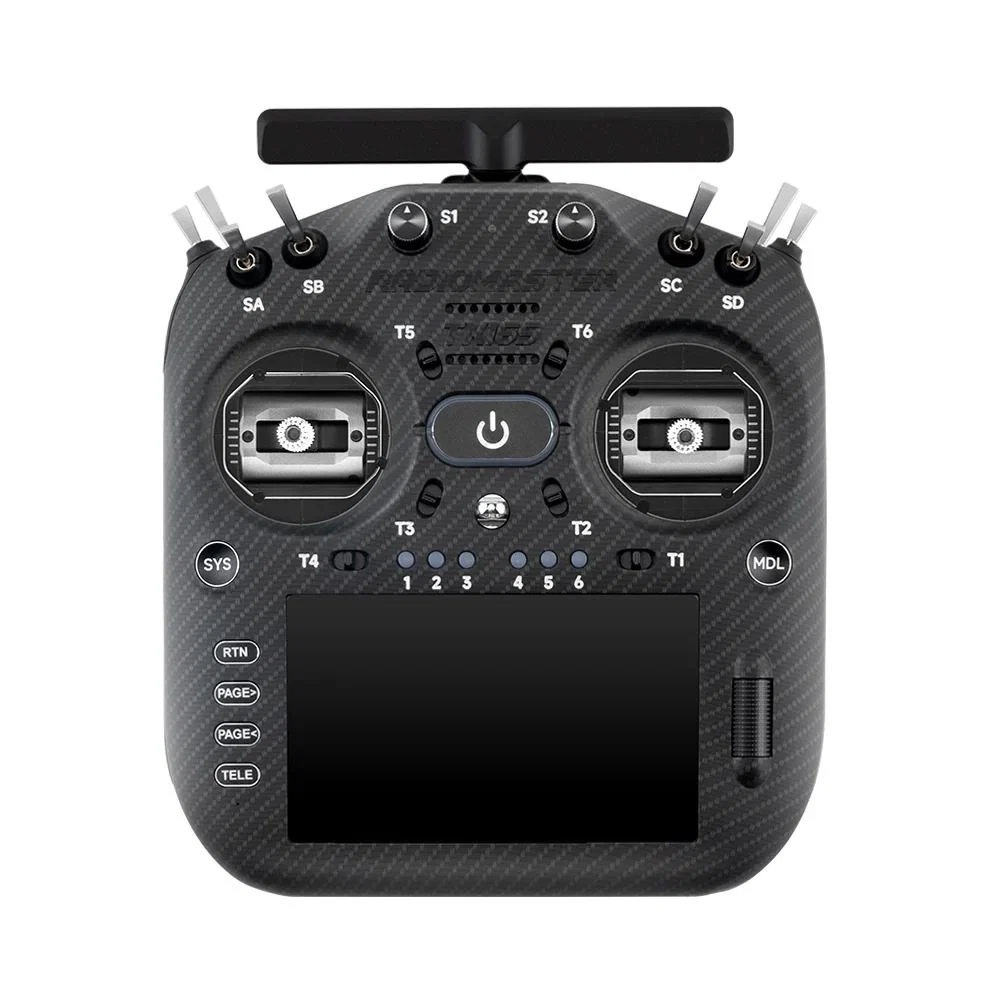

Nazwa modelu: RadioMaster TX16S MK3 MAX ELRS Gemini 2.4GHz and Sub-G 900MHz 5-inch Touchscreen Display AG02 Gimbals Mode 2 Radio Controller - Choose Color
MPN producenta: —
SKU podane przez sklep: S1-14439-BLACK
Typ produktu w katalogu sklepu: Radios
Wariant: Black
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | RadioMaster |
| Battery | Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery / 2S 7.4V 6200mAh Lipo (batteries not included) |
| Channels | Up to 16ch |
| Dimensions mm | 200*178*88mm |
| Display | 5-inch, 800 x 480 IPS touchscreen with vivid colors and sharp detail. |
| Firmware | EdgeTX (require 3.0.0 or higher) |
| Frequency band | ISM 2.4GHz and Sub-G 900MHz |
| Gimbals | AG02 Quad-Bearing, CNC Aluminum Hall sensor gimbals (Model dependent). |
| Input voltage v | 6.6 - 8.4V DC |
| Mass g | 864g (without battery) |
| Mcu | High-Performance MCU: Powered by the STM32 H7 chip for maximum processing power. |
| Output power mw | Working Current: 1.10A (at max RF output power) |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | Black | 310,49 USD |
