Identyfikacja wariantu#

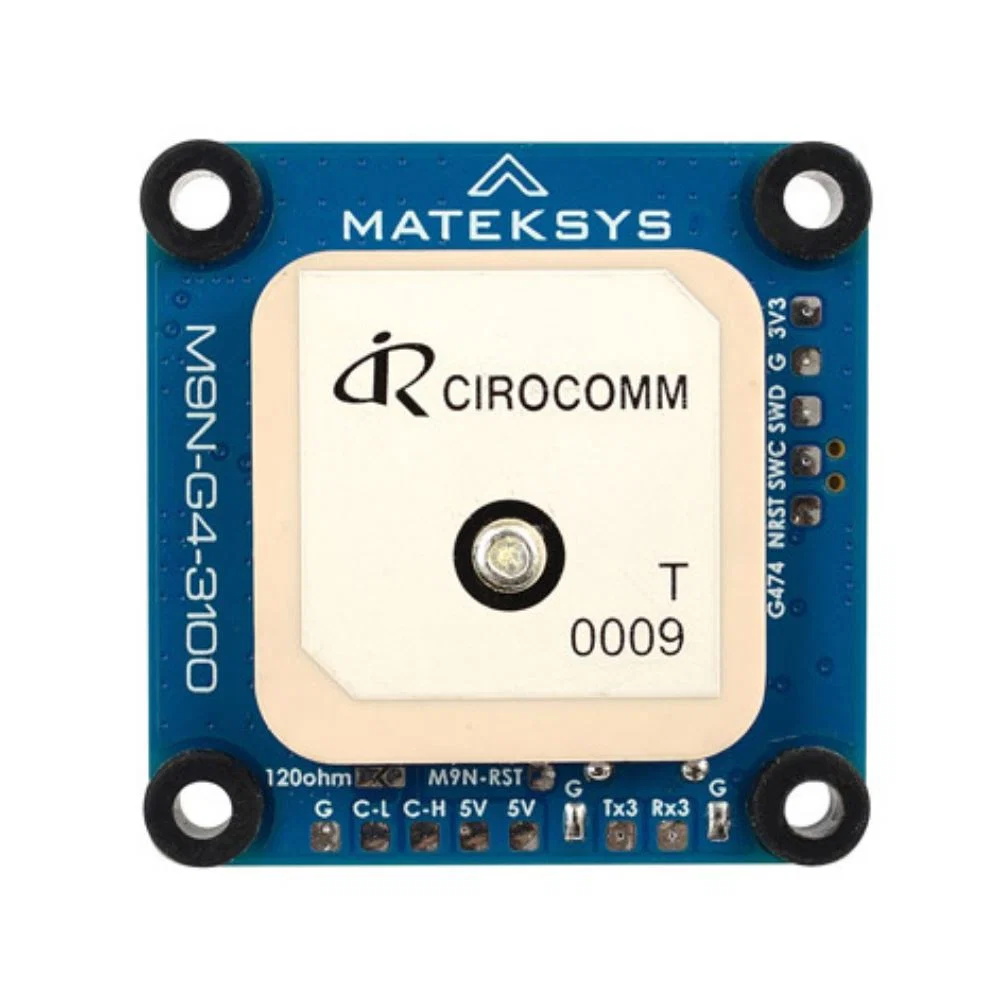

Nazwa modelu: Matek AP_PERIPH DroneCAN GNSS M9N-G4-3100 (GPS+Compass)
MPN producenta: —
SKU podane przez sklep: K1-13886
Typ produktu w katalogu sklepu: FC Accessories
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Matek |
| Antena | Patch GNSS Antenna 25*25*4mm |
| Liczba jednoczesnych GNSS | M9N-G4-3100 uses multi-constellation GNSS powered by M9 series , It is a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. |
| Obsługiwane konstelacje | Patch GNSS Antenna 25*25*4mm |
| Firmware | M9N-G4-3100 is based on ArudPilots’ AP_Periph firmware, It is a GNSS+COMPASS peripheral with CAN/DroneCAN and UART/MSP interfaces. |
| Napięcie zasilania | 4~6V (5V pad/pin) |
| Interface | M9N-G4-3100 is based on ArudPilots’ AP_Periph firmware, It is a GNSS+COMPASS peripheral with CAN/DroneCAN and UART/MSP interfaces. |
| Magnetometr | Magnetic Compass RM3100 |
| Mcu | MCU STMG474CE, 170MHz |
| Operating temperature c | -20~80 °C |
| Protokoły danych | CAN_D1_PROTOCOL -> 1 |
| Odbiornik GNSS | The M9N-G4-3100 provides the ability to reset the receiver. Bridging “M9N-RST” pad to Ground for at least 100 ms will trigger a cold start. RESET will delete all information and trigger a cold start. It should only be used as a recovery option. |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 116,99 USD |
