Identyfikacja wariantu#

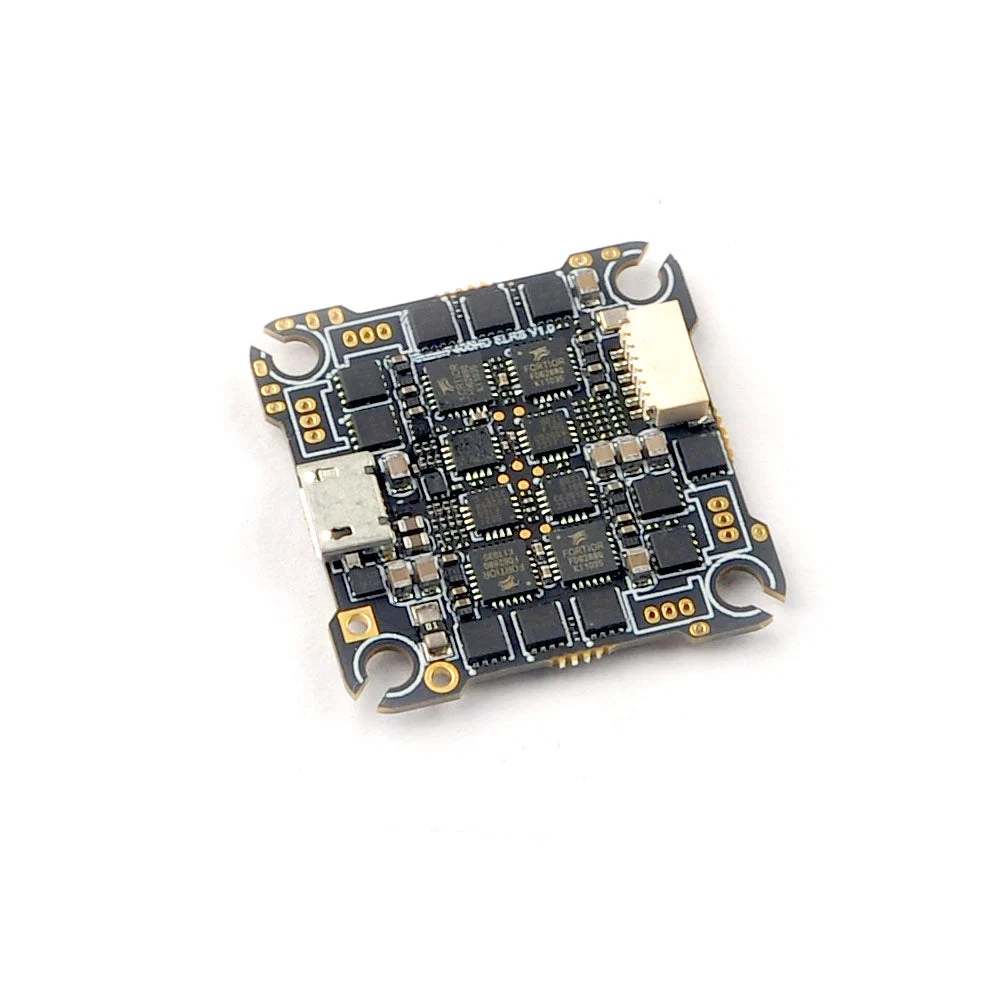

Nazwa modelu: Happymodel SuperF405 HD AIO Flight Controller for HD Whoops 3-4S 20A ESC-UART ELRS 2.4GHz- 25x25mm
MPN producenta: —
SKU podane przez sklep: N10-12642
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Happymodel |
| Barometr | Built-in BMP280 Barometer |
| Pamięć logów / blackbox | Built-in 8MBp blackbox |
| Taktowanie rdzenia | 2.4GHz |
| Connector | IPEX |
| Wymiary | 25mm*25mm |
| Firmware | F_H_40_48_v0.19.2 |
| Obsługiwane firmware | Factory firmware: Bluejay 0.19.2 |
| Target firmware | Firmware target: F_H_40_48_v0.19.2 |
| Pamięć Flash MCU | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) |
| Główny mikrokontroler | STM32F405RGT6 (168MHZ, 1Mbyte FLASH) |
| Protocols | DSHOT150/DSHOT300/DSHOT600 |
| Liczba UART | ELRS receiver was connected to UART2 default out of factory.Usually UART1 or UART6 Could be used for MSP OSD with HD VTX.UART6 could be used for GPS or other serial equipment.IRX6 is an inverted serial RX6 for SBUS input.IRX6 and TX6/RX6 couldn’t be used at the same time. |
| Złącze USB | Supply power to the flight controller by plug USB, wait until the red LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the red LED light will start to double-flash, which means that the Receiver enters the binding mode |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 73,99 USD |
