Identyfikacja wariantu#

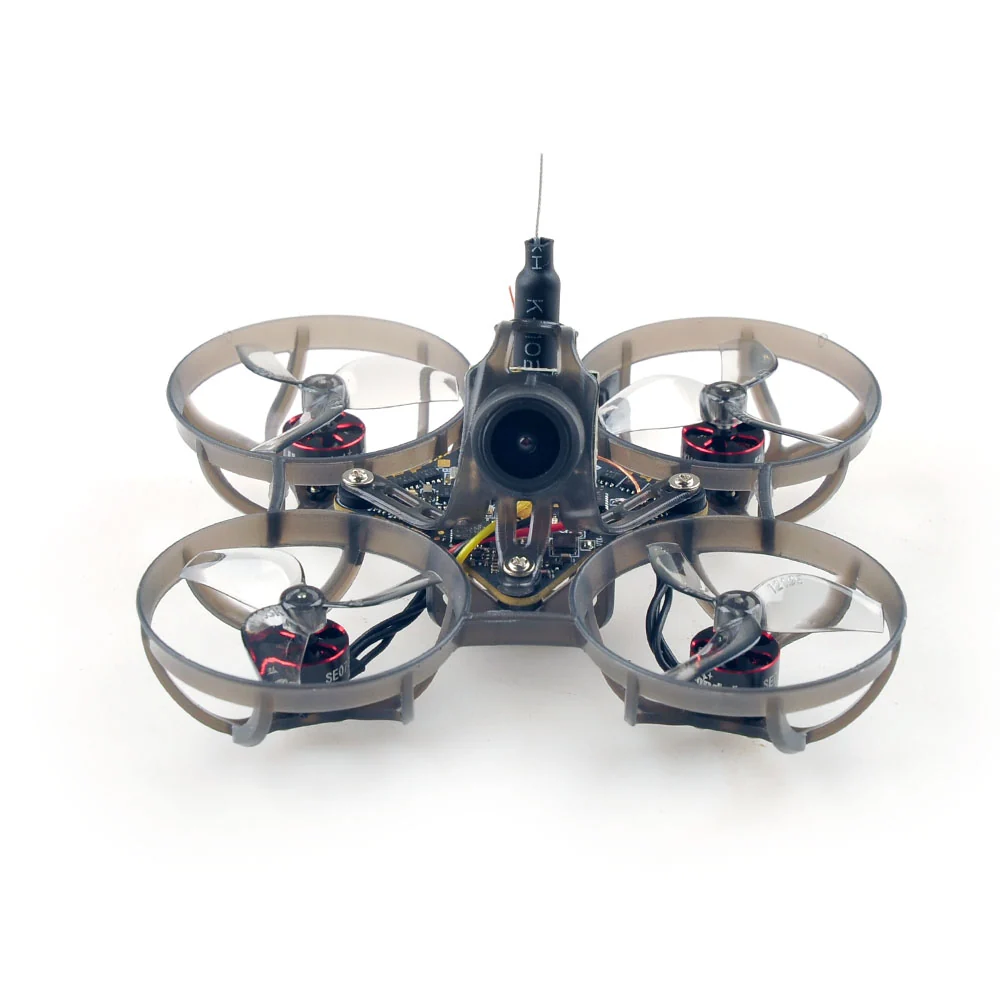

Nazwa modelu: Happymodel Mobula6 2024 V3 Analog ELRS 2.4GHz 1S 65mm Ultra Light FPV Whoop Drone
MPN producenta: —
SKU podane przez sklep: Y3-14402
Typ produktu w katalogu sklepu: Micro Quads & Accessories
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Happymodel |
| Connector | A30(compatible with BT2.0) | A30(compatible with BT2.0) |
| Dimensions mm | 81mm*81mm*37mm |
| Firmware | Betaflight 4.6 CrazybeeG473 | Customized STM32F411 |
| Materiał główny | Nano5 Camera Image Sensor: 1/3″ CMOSHorizontal Resolution: 1200 TVLLens: 2.1mm (M10) 155° FOVTV System: NTSCSignal-to-Noise Ratio: >52dBElectronic Shutter: AutoAutomatic Gain Control (AGC): AutoMinimum Illumination: 0.001Lux@1.2FDigital Wide Dynamic Range: AutoPower Supply: DC 3-5.5VCurrent: 110mA@5V 120mA@3.3VHouse Material: ABSNet Weight: 1.57g (1.0mm plug version) |
| Mass g | 17.6g |
| Materiał | Propellers Materials: PCInch: 31mmPitch: 0.8 inWeight: 0.21gMount hole diameter: 1mm |
| Mcu | Flight controller MCU: STM32G473CEU6Gyro: ICM42688PSensor: Voltage & CurrentBEC: 5V, Max. 2AUART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)BetaFlight OSD: AT7456EESC: 5A continuousRX: Serial ELRS 2.4GHzRX antenna: Enameled copper wire 31mm lengthReceiver firmware target: HappyModel EP1/EP2 2.4GHz RXOPENVTX: 5.8GHz 48 channels, Max. 400mWFC firmware target: CRAZYBEEG473USB port: SH1.0-4PinBattery connector: A30Mounting hole size: 25.5mm x 25.5mmWeight: 3.83g without pigtail and vtx antenna |
| Protocols | Onboard 4in1 ESC Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds)Support BLHeliSuite programmableFactory firmware: Bluejay v0.21Firmware target: A_X_5_96KHzDefault protocol: DSHOT300 DSHOT600Recommend ESC Startup power value to min1100/max1200 |
| Rozstaw osi silników | 65mm |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 142,99 USD |
