Identyfikacja wariantu#

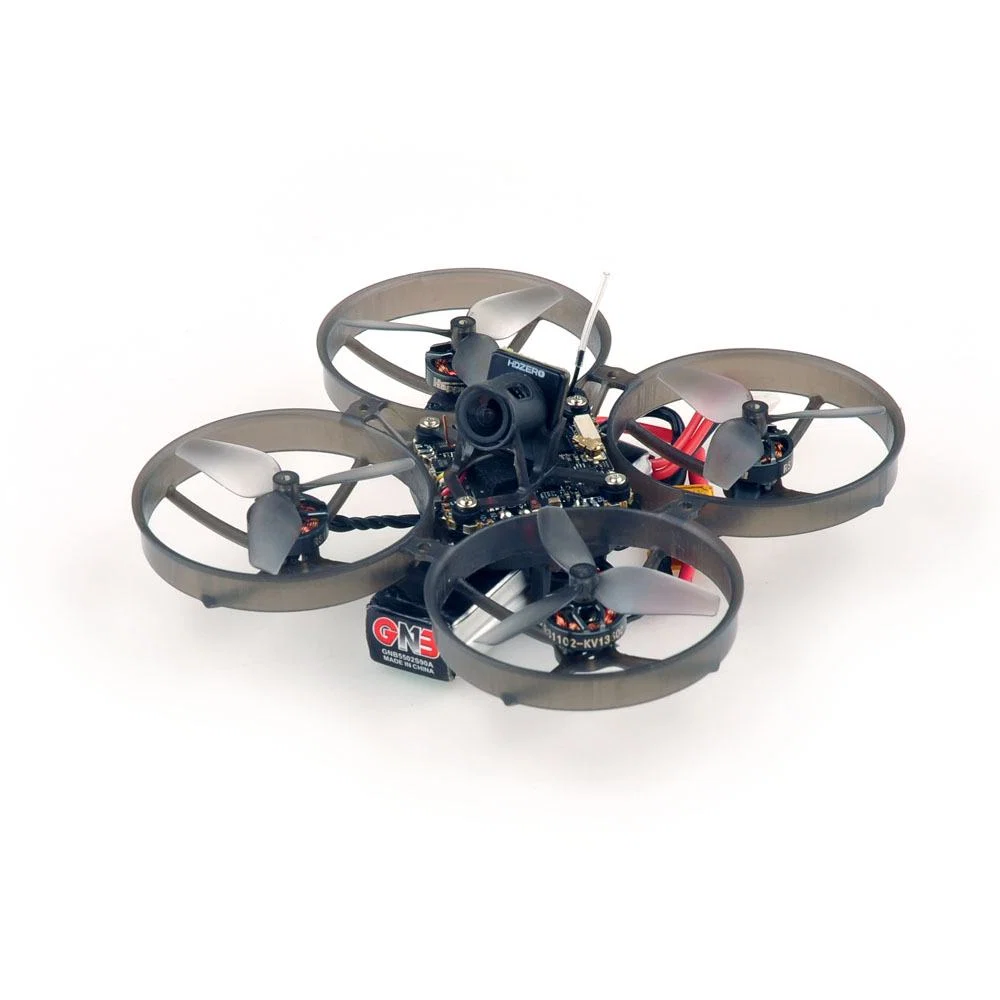

Nazwa modelu: Happymodel M8 Freestyle HDZERO 80mm Digital HD Micro FPV whoop - ELRS 2.4
MPN producenta: —
SKU podane przez sklep: Y10-14173
Typ produktu w katalogu sklepu: Micro Quads & Accessories
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Happymodel |
| Connector | Flight controller MCU: STM32G473 (170MHz, 512K Flash)Gyro: ICM42688On board voltage and amperage metersBuilt-in 15A(each) Blue Jay 4-in-1 ESCBuilt-in 5.8G HDZero VTXRF output: 25mw/200mWSupported channels: R1-R8, F2/F4, L1-L8UFL connector (ultra-lite linear antenna included)Built-in Serial ExpressLRS 2.4GHz receiverBuilt-in 5V 3A BECFlight controller firmware target: HDZERO_AIO15Power supply: 2S battery (6.4v~8.7v)Fully compatible with the popular whoop framesBoard size:31.3×31.3mm with a 25.5×25.5 mounting hole sizeWeight:7.2g (with motor plugs) |
| Dimensions mm | LUX camera HDZero Lux CameraSensor size: 1/2 inchResolution: 720p60 4:3 and 16:9FOV: D:155° H:126° V:94°(4:3)FOV: D:145° H:126° V:70°(16:9)WDR |
| Firmware | Onboard 4in1 ESC Power supply: 2S LiPo/LiPo HVCurrent: 15A continuous,18A peak (3 seconds)Support BLHeli_S Bluejay firmwareFactory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHzDefault protocol: DSHOT300 |
| Elementy w zestawie | Recommend 2S 550mah battery (Not Included) |
| Mass g | Weight only 33.5gram |
| Mcu | Flight controller MCU: STM32G473 (170MHz, 512K Flash)Gyro: ICM42688On board voltage and amperage metersBuilt-in 15A(each) Blue Jay 4-in-1 ESCBuilt-in 5.8G HDZero VTXRF output: 25mw/200mWSupported channels: R1-R8, F2/F4, L1-L8UFL connector (ultra-lite linear antenna included)Built-in Serial ExpressLRS 2.4GHz receiverBuilt-in 5V 3A BECFlight controller firmware target: HDZERO_AIO15Power supply: 2S battery (6.4v~8.7v)Fully compatible with the popular whoop framesBoard size:31.3×31.3mm with a 25.5×25.5 mounting hole sizeWeight:7.2g (with motor plugs) |
| Protocols | Onboard 4in1 ESC Power supply: 2S LiPo/LiPo HVCurrent: 15A continuous,18A peak (3 seconds)Support BLHeli_S Bluejay firmwareFactory firmware: Bluejay ESC V0.19.2Firmware target: Z-H-30 48KHzDefault protocol: DSHOT300 |
| Rozstaw osi silników | 80mm wheelbase |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 272,99 USD |
