Identyfikacja wariantu#

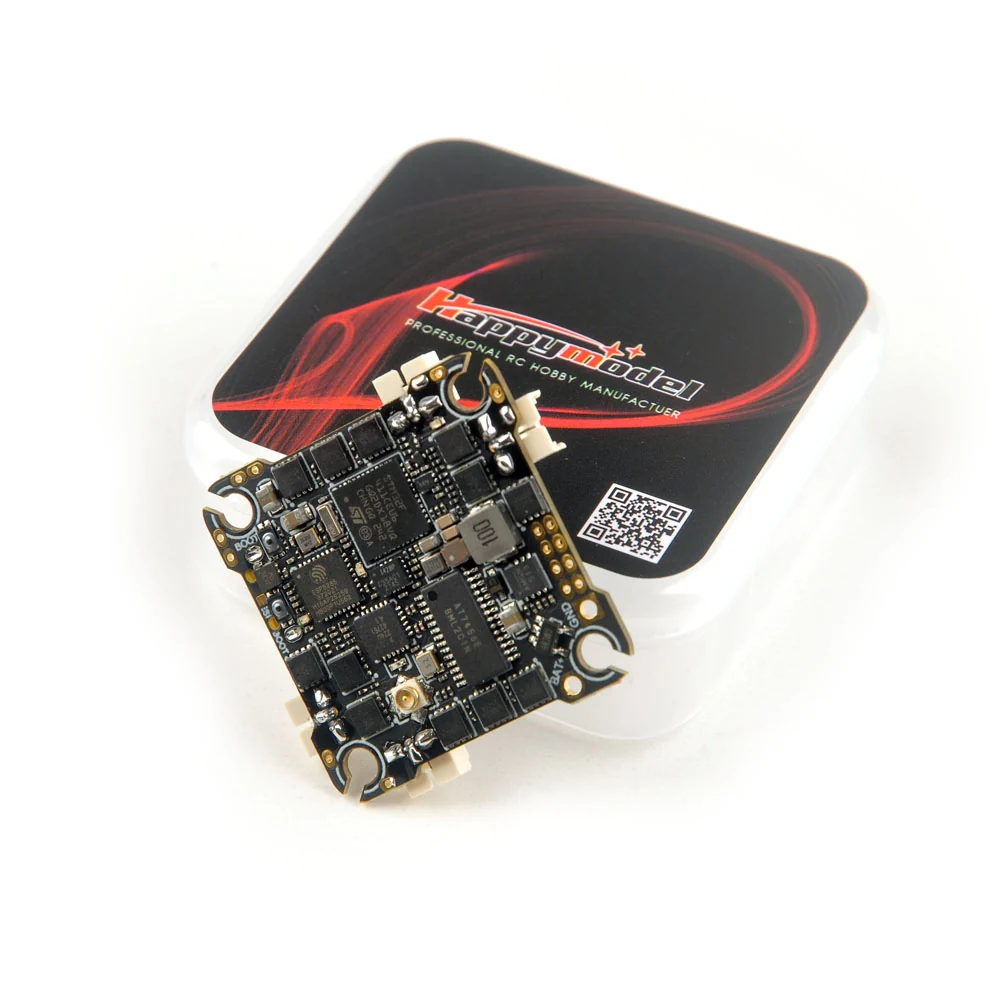

Nazwa modelu: Happymodel CrazyF411 20A F4 ELRS 2.4GHz Whoop AIO Flight Controller
MPN producenta: —
SKU podane przez sklep: I2-11744
Typ produktu w katalogu sklepu: Flight Controllers
Wariant: Default Title
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Happymodel |
| Taktowanie rdzenia | Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Connector | Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Firmware | Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Obsługiwane firmware | Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Target firmware | Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH)Sensor: ICM42688P or BMI270 (SPI Control)Mount pattern: 25.5×25.5 M2Size:32*28*9mmPower supply: 2-4S Lipo batteryBuilt-in 20A Blheli_s ESC eachBuilt-in Betaflight OSD(SPI Control)Built-in UART ExpressLRS 2.4GHz receiverBuilt-in 5V 1.5A BECFlight controller firmware target: CRAZYBEEF4DX |
| Pamięć Flash MCU | Flight controller MCU:STM32F411CEU6 (100MHZ, 512K FLASH)Sensor: ICM42688P or BMI270 (SPI Control)Mount pattern: 25.5×25.5 M2Size:32*28*9mmPower supply: 2-4S Lipo batteryBuilt-in 20A Blheli_s ESC eachBuilt-in Betaflight OSD(SPI Control)Built-in UART ExpressLRS 2.4GHz receiverBuilt-in 5V 1.5A BECFlight controller firmware target: CRAZYBEEF4DX |
| Główny mikrokontroler | Onboard 4in1 ESC MCU upgraded to EFM8BB21Power supply: 2-4S LiPo/LiPo HV (7v/17v)Currents: 20A continuous peak 25A (5 seconds)Support BLHeliSuite programmableFactory firmware: Bluejay 0.18.1Firmware target: F_H_40_48_v0.18.1Default protocol: DSHOT150/DSHOT300/DSHOT600 |
| Protocols | Onboard UART ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Liczba UART | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500HzRF Frequency: 2.4GHzAntenna plug: IPEXTelemetry output Power: \<12dBmReceiver protocol: CRSFDefault firmware version: ExpressLRS V3.0.1 |
| Złącze USB | Supply power to the flight controller by plug USB, wait until the green LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the green LED light will start to double-flash, which means that the RX enters the binding mode |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| PyroDrone | — | 75,99 USD |
