Identyfikacja wariantu#

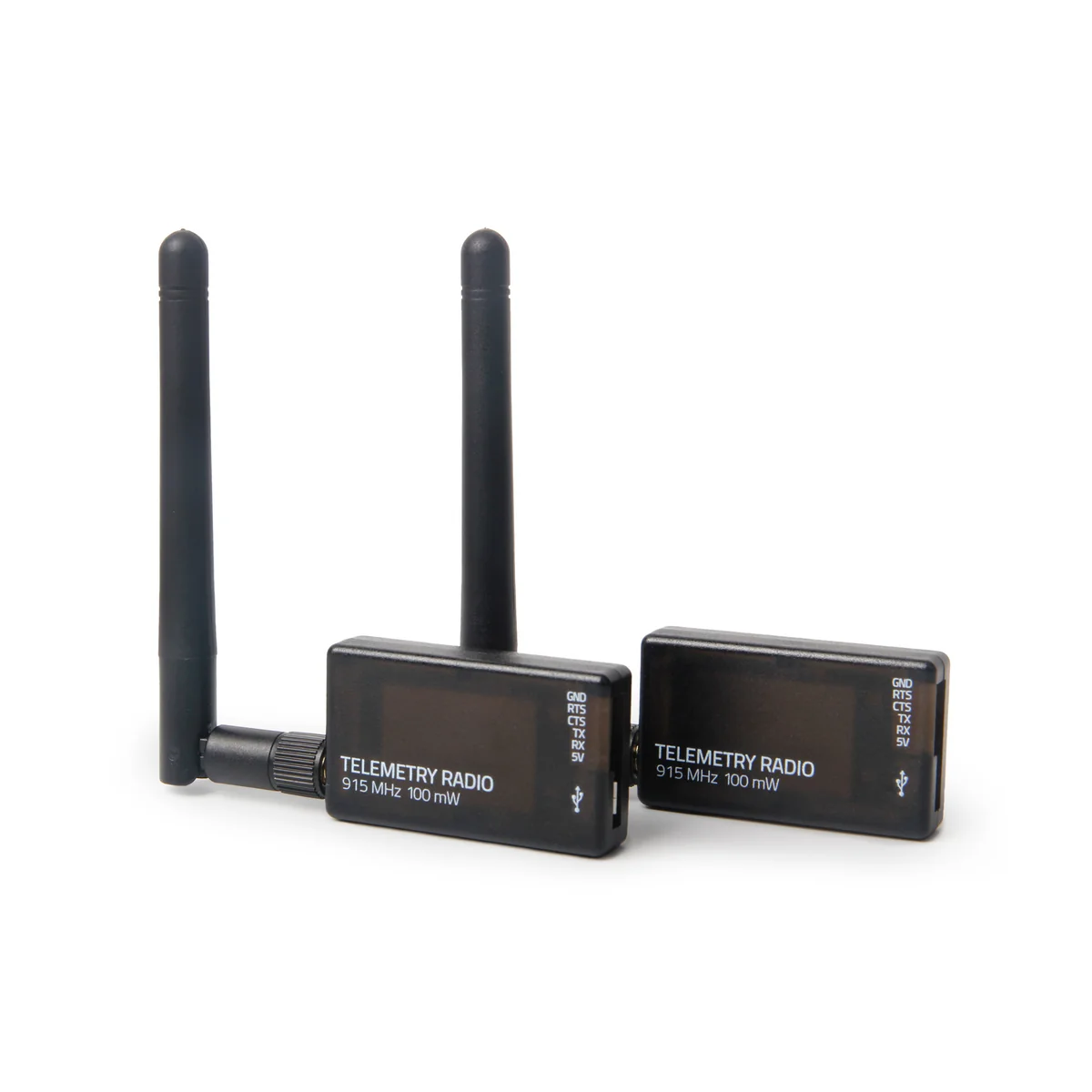

Nazwa modelu: SiK Telemetry Radio V3
MPN producenta: —
SKU podane przez sklep: 17014
Typ produktu w katalogu sklepu: Telemetry Radio
Wariant: 500mW 433MHz (Discontinued)
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Air rate | 2, 4, 8, 16, 32, 64(default), 96, 128, 192, 250 kbps |
| Connector | 6-pin JST-GH connector, 3.3V-TTL |
| Dimensions mm | 28 x 53 x 10.7mm (without antenna) | 66.5 x 32 x 16.5mm (without antenna) |
| Firmware | Open-source SIK firmware |
| Frequency band | 902MHz - 928MHz or 414MHz - 460MHz |
| Host interface | Serial interface: 3.3 V UART |
| Input voltage v | 100mW & 500mW version: 5V DC (from USB or JST-GH) 1W version: 7~28V DC via XT30 |
| Interface | 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6(default), 115.2 kbps |
| Mass g | 23.5g w/ antenna | 67g w/ antenna |
| Operating temperature c | -40~85°C |
| Output power mw | 20 dBm | 27 dBm | 30 dBm |
| Protocols | MAVLink protocol framing |
| Radio protocol | MAVLink protocol framing |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | 500mW 433MHz (Discontinued) | 62,99 USD |
