Identyfikacja wariantu#

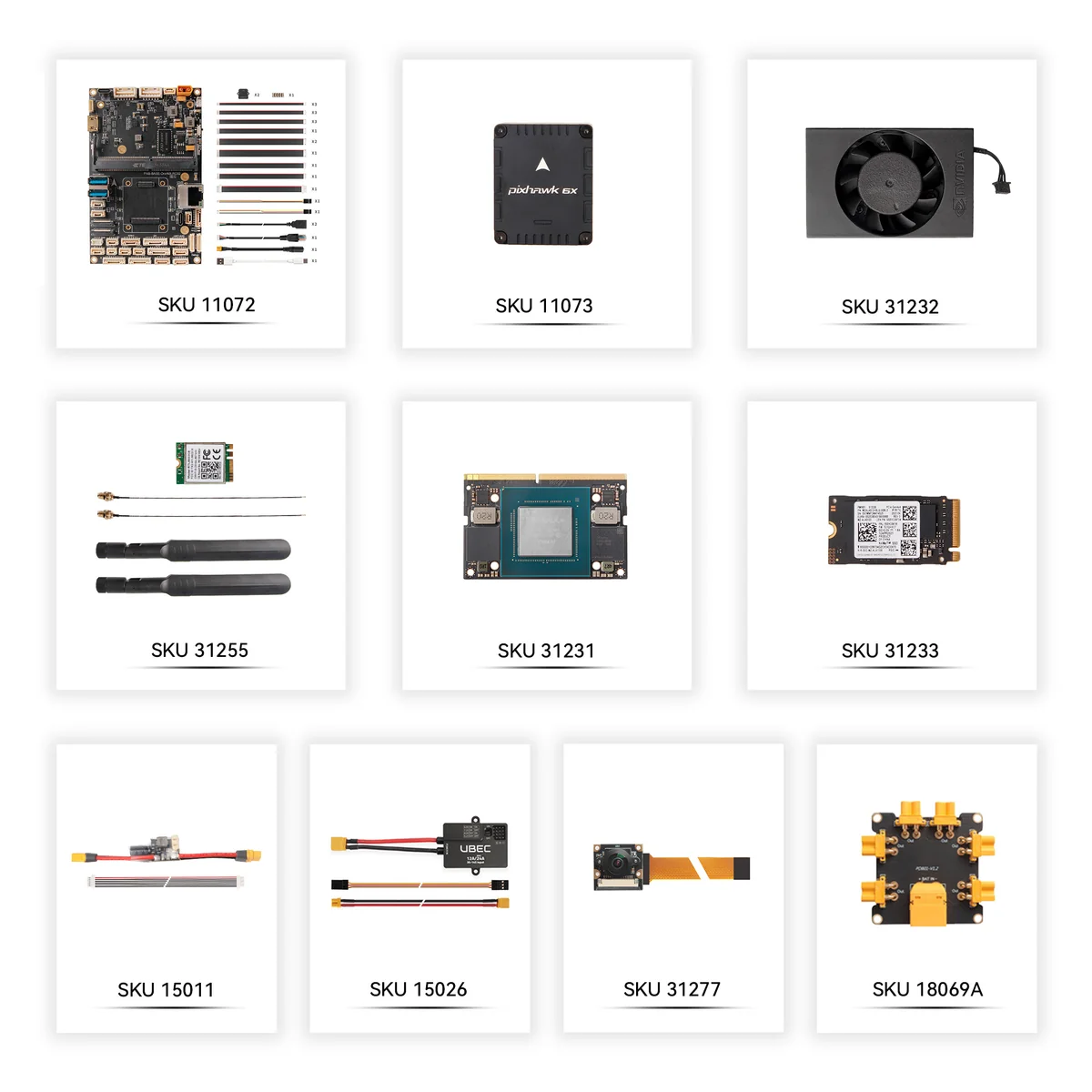

Nazwa modelu: Pixhawk Jetson Baseboard Bundle
MPN producenta: —
SKU podane przez sklep: 20340
Typ produktu w katalogu sklepu: Flight Controller
Wariant: Pixhawk 6X / Jetson Orin NX 16GB (with Wi-Fi & SSD & Camera) / With Case
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Barometr | ICP20100 & BMP388 |
| Liczba magistral CAN | 2x CAN Ports 4 Pin JST-GH |
| Connector | 7-21V (3S-4S) Separate input power circuits from the Pixhawk to ensure flight safety Holybro UBEC 12A (3-14S) can be used for applications above 4S Note: The Pixhawk Jetson Baseboard onboard BEC is only rated for 7- 21V (3S- 4S). Using the external "UBEC 12A (3-14S)" can provide redundancy and easier replacement in case of BEC failure. |
| Wymiary | 48x33.6x16.3 mm |
| Pamięć Flash MCU | 32-bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| IMU na płytce | 3x ICM-45686 (with BalancedGyro™ Technology) Barometer: ICP20100 & BMP388 Mag: BMM150 |
| Napięcie zasilania modułu | 3~14S (XT30) |
| Interface | Pixhawk Pixhawk Bus Interface 100 Pin Hirose DF40 50 Pin Hirose DF40 |
| Mikrokontroler I/O | IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM |
| Magnetometr | BMM150 |
| Masa | 47.8g |
| Główny mikrokontroler | STM32H753 32-bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Przetwornice pokładowe | Note: The Pixhawk Jetson Baseboard onboard BEC is only rated for 7- 21V (3S- 4S). Using the external "UBEC 12A (3-14S)" can provide redundancy and easier replacement in case of BEC failure. |
| Wyjścia PWM / silnikowe | 16 PWM Outputs 2x 10-Pin JST-GH |
| Pamięć RAM MCU | Nvidia Orin NX (16GB RAM)/Nvidia Orin Nano (4GB RAM) |
| Liczba UART | Key E 2230 for WiFi/BT PCIEx2 USB UART I2S |
| Złącze USB | USB |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | Pixhawk 6X / Jetson Orin NX 16GB (with Wi-Fi & SSD & Camera) / With Case | 2 005,00 USD |
