Identyfikacja wariantu#

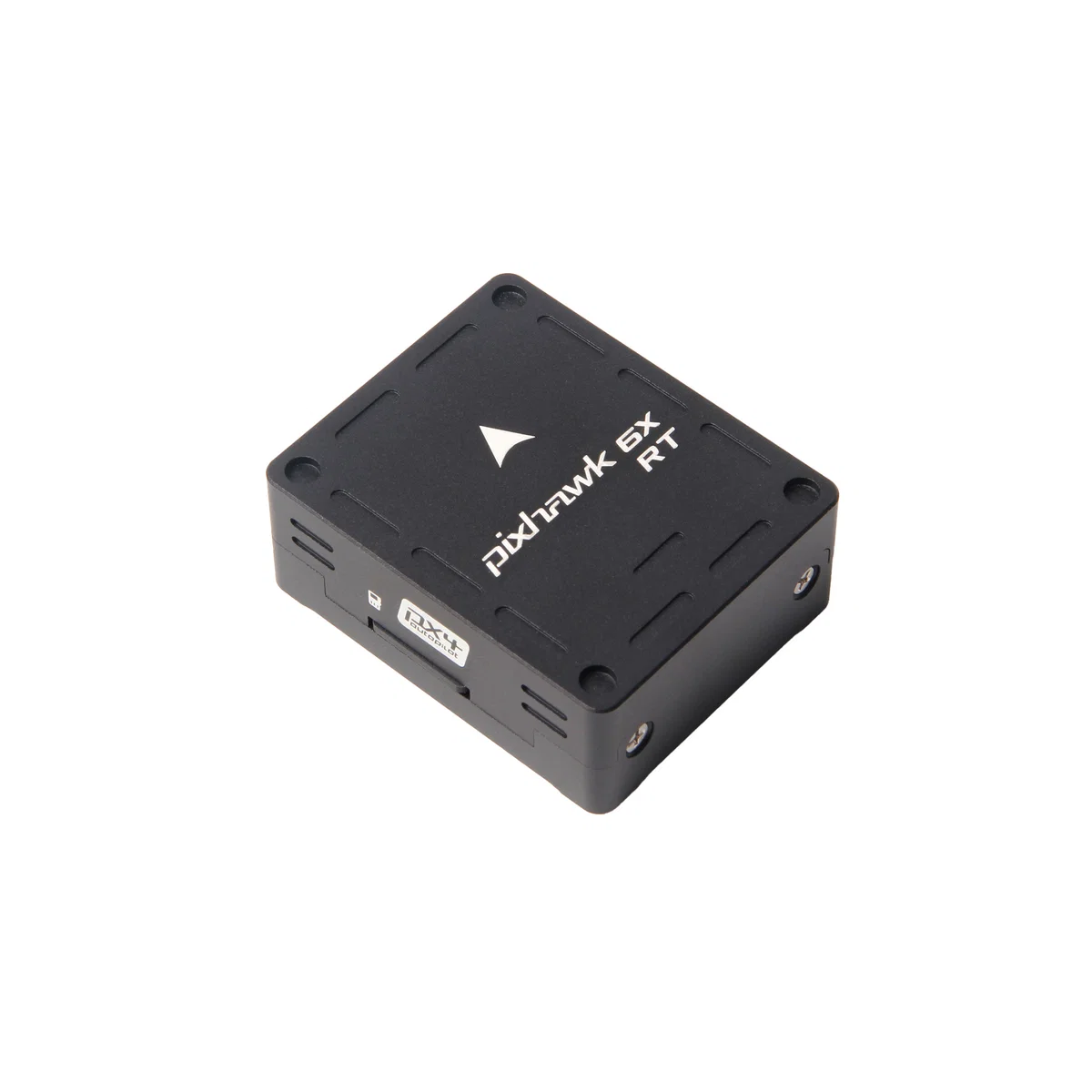

Nazwa modelu: Pixhawk 6X-RT
MPN producenta: —
SKU podane przez sklep: 11064+18117+15011
Typ produktu w katalogu sklepu: Flight Controller
Wariant: Standard v2A
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Barometr | BMP390 |
| Liczba magistral CAN | This Flight controller uses digital or DroneCAN l power module (same as Pixhawk 6X, full list can be found here) Power module comparison chart |
| Connector | Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Bus connector. |
| Firmware | FMUv6xrt). It is not supported in Ardupilot at the moment. |
| Obsługiwane firmware | Firmware Flashing Instruction (Github) |
| Target firmware | This Flight Controller is currently support in PX4 Flight Stack only. (Firmware Target: FMUv6xrt). It is not supported in Ardupilot at the moment. |
| Pamięć Flash MCU | 64MB Octal SPI Flash |
| IMU na płytce | BMI088 Accel/Gyro: ICM-42688-P Accel/Gyro: ICM-42686-P Mag: BMM150 Barometer: BMP390 Barometer: BMP388 |
| Interface | SDHC interface |
| Mikrokontroler I/O | IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM |
| Magnetometr | BMM150 |
| Główny mikrokontroler | i.MXRT1176 Cortex-M7 @ 1GHz Cortex-M4 @ 400MHz 2MB SRAM 64MB Octal SPI Flash |
| Liczba UART | 8x UART |
| Złącze USB | USB |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | Standard v2A | 319,98 USD |
