Identyfikacja wariantu#

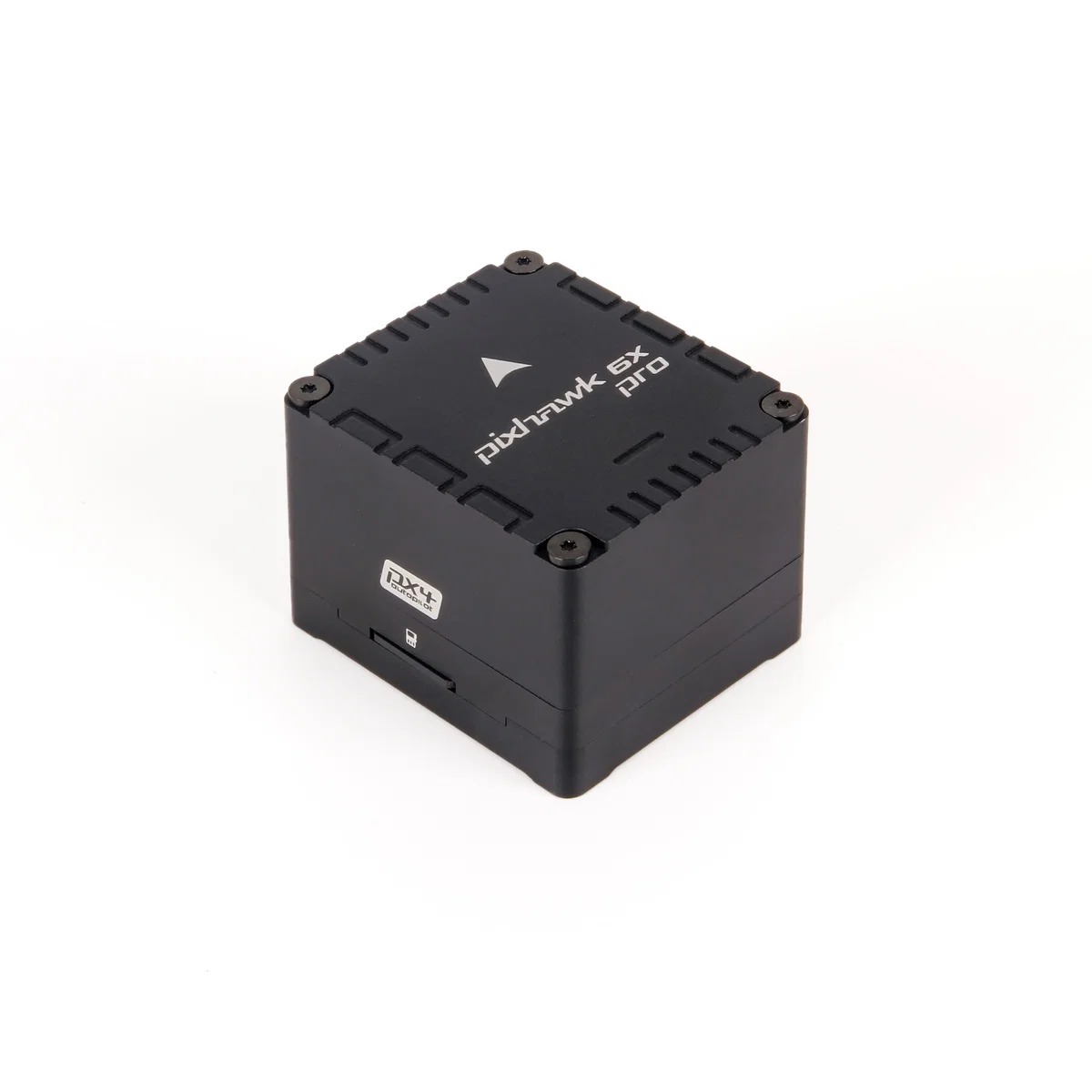

Nazwa modelu: Pixhawk 6X Pro
MPN producenta: —
SKU podane przez sklep: 11070
Typ produktu w katalogu sklepu: Flight Controller
Wariant: FC Module Only / FC Module Only
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Barometr | ICP20100 |
| Liczba magistral CAN | Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination). |
| Connector | NXP EdgeLock SE050 Plug & Trust hardware secure element |
| Firmware | Firmware Support |
| Obsługiwane firmware | Firmware Support |
| Pamięć Flash MCU | 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| IMU na płytce | ADIS16470 ±40g, Vibration Isolated, Industrial IMU Accel/Gyro: IIM-42652 ±16g, Vibration Isolated, Industrial IMU Accel/Gyro: ICM-45686 with BalancedGyro™ Technology ±32g, Hard Mounted Barometer: ICP20100 Barometer: BMP388 Mag: BMM150 |
| Napięcie zasilania modułu | 6V |
| Interface | Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination). |
| Mikrokontroler I/O | IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM |
| Magnetometr | BMM150 |
| Materiał | Isolation Material Testing Data |
| Główny mikrokontroler | STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Operating temperature c | -25-85°C |
| Pamięć RAM MCU | 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Złącze USB | USB Power Input: 4.75~5.25V |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | FC Module Only / FC Module Only | 644,00 USD |
