Identyfikacja wariantu#

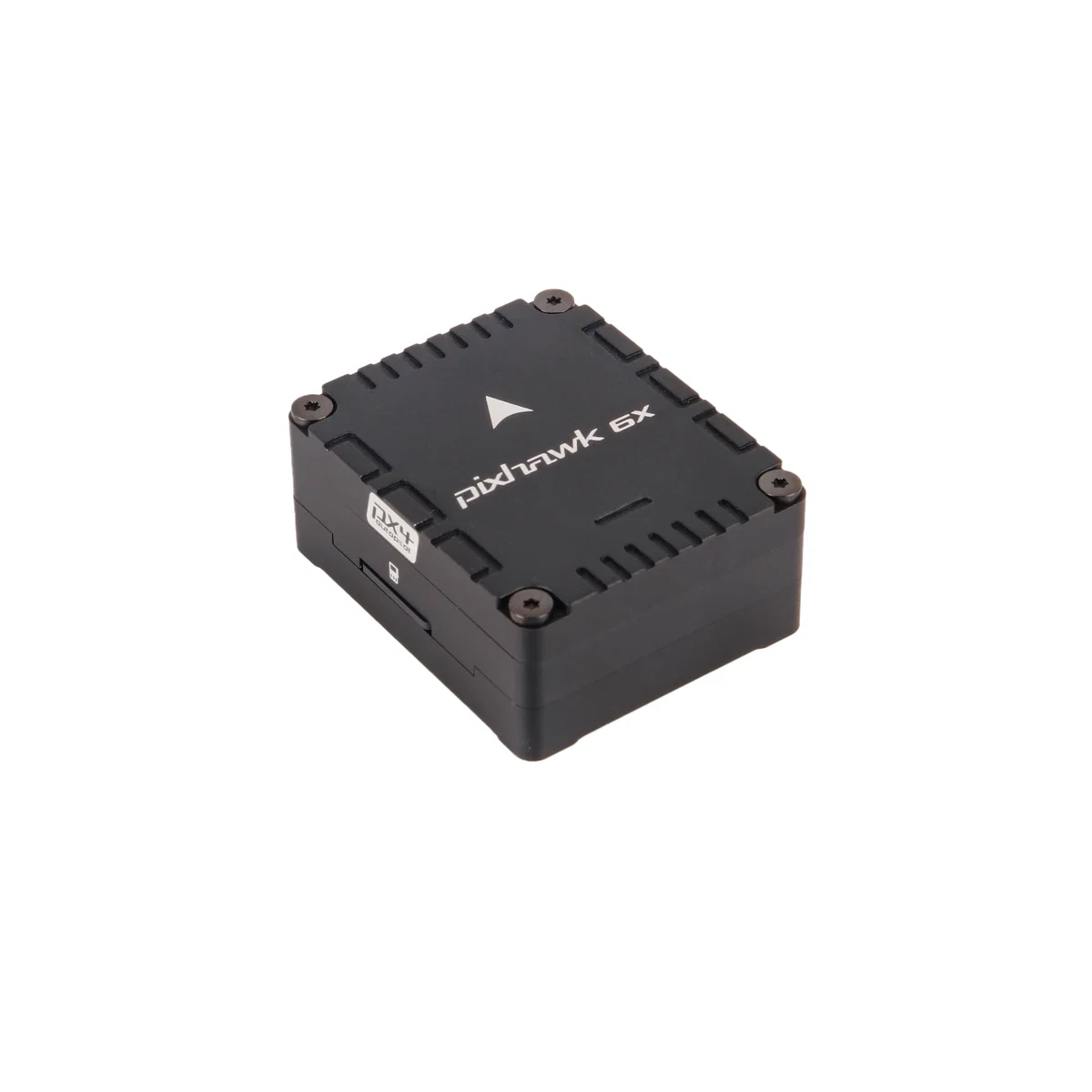

Nazwa modelu: Pixhawk 6X
MPN producenta: —
SKU podane przez sklep: 11073+18125+15011
Typ produktu w katalogu sklepu: Flight Controller
Wariant: Standard v2B / PM02D
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Barometr | ICP20100 & BMP388 |
| Liczba magistral CAN | Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination). |
| Taktowanie rdzenia | High-performance STM32H753 Processor with a clock speed of up to 480 MHz |
| Connector | NXP EdgeLock SE050 Plug & Trust hardware secure element |
| Firmware | Latest info on Supported Firmware. |
| Obsługiwane firmware | Latest info on Supported Firmware. |
| Pamięć Flash MCU | 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| IMU na płytce | BMI088/ICM-20649 Accel/Gyro: ICM-42688-P Accel/Gyro: ICM-42670-P Mag: BMM150 Barometer: 2x BMP388 |
| Napięcie zasilania modułu | 6V |
| Interface | Ethernet interface for high-speed mission computer integration. Transformerless can be achieved using 50 Ohm termination resistors at the target device (AN2190 50 Ohm termination). |
| Mikrokontroler I/O | IO Processor: STM32F103 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM |
| Magnetometr | BMM150 |
| Materiał | All-New advanced durable vibration isolation material with resonance frequency in the higher spectrum |
| Główny mikrokontroler | STM32H753 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Operating temperature c | -25-85°C |
| Pamięć RAM MCU | 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Złącze USB | USB Power Input: 4.75~5.25V |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | Standard v2B / PM02D | 320,98 USD |
