Identyfikacja wariantu#

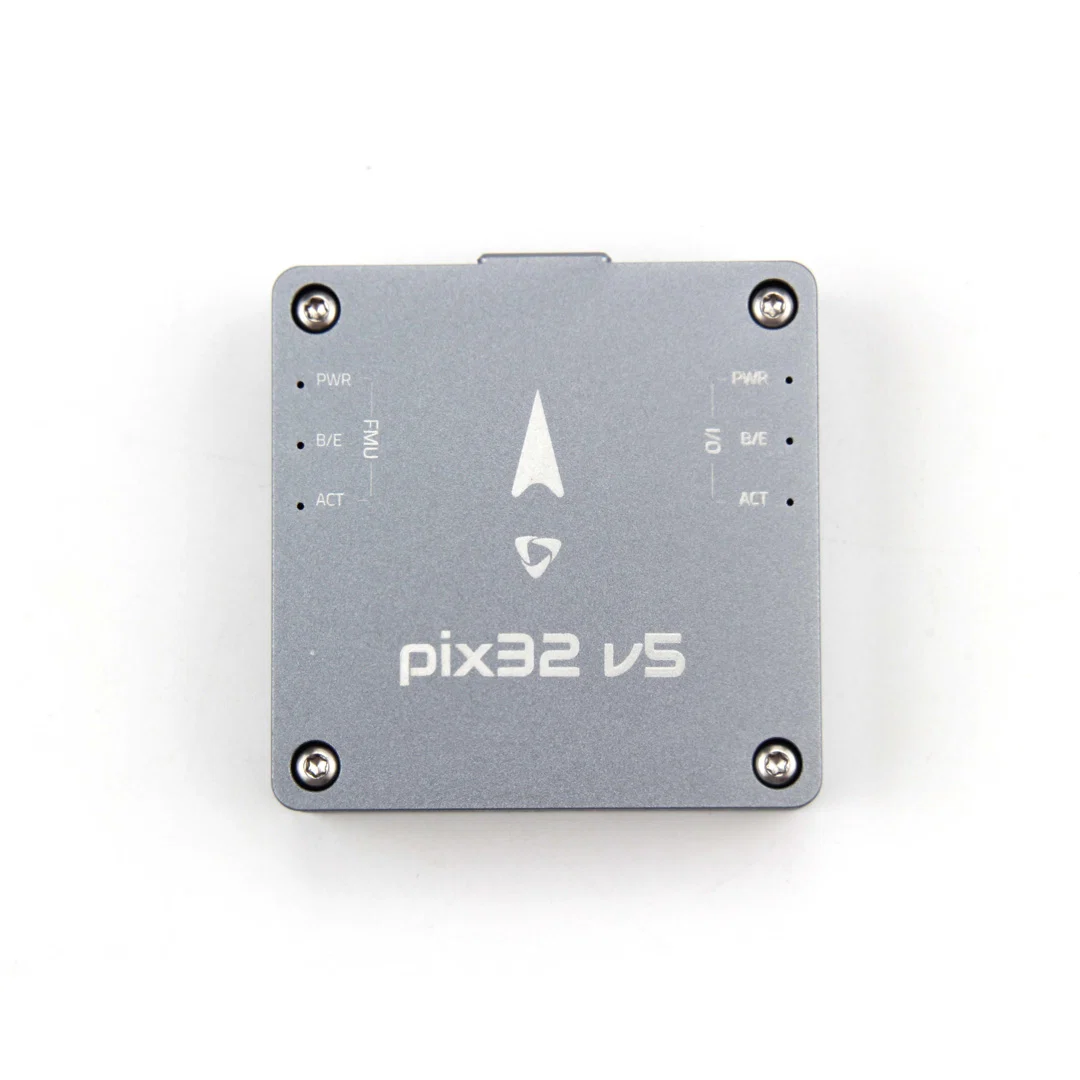

Nazwa modelu: Pix32 v5
MPN producenta: —
SKU podane przez sklep: 11044
Typ produktu w katalogu sklepu: Flight Controller
Wariant: FC Module Only
Parametry techniczne#
| Parametr | Wartość |
|---|---|
| Producent | Inne |
| Barometr | MS5611 |
| Pamięć logów / blackbox | Storage temp. -40~85C |
| Liczba magistral CAN | Up to 2 CANBuses for dual CAN with serial E Each CANBus has individual silent controls or ESC RX-MUX control |
| Connector | Flight Controller and inertial management unit (IMU) are housed in a ultra small form factor, separated from the base board. It follows the PX4 PAB interface standard 100-pin connector design. This allow a plug-in solution for manufacturers of commercial systems. Manufacturers and end users can design their own customized base board to fit their specific needs. |
| Wymiary | 45mm x 45mm x13.5mm |
| Pamięć Flash MCU | 32 Bit Arm ® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM |
| IMU na płytce | ICM-20689 Accel/Gyro: BMI055(ICM20602) Mag: IST8310 Barometer: MS5611 |
| Napięcie zasilania modułu | 6V |
| Interface | Flight Controller and inertial management unit (IMU) are housed in a ultra small form factor, separated from the base board. It follows the PX4 PAB interface standard 100-pin connector design. This allow a plug-in solution for manufacturers of commercial systems. Manufacturers and end users can design their own customized base board to fit their specific needs. |
| Mikrokontroler I/O | IO Processor: STM32F100 32 Bit Arm ® Cortex®-M3, 24MHz, 8KB SRAM |
| Magnetometr | IST8310 |
| Masa | 33.0g |
| Główny mikrokontroler | STM32F765 32 Bit Arm ® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM |
| Wyjścia PWM / silnikowe | 8-16 PWM servo outputs (8 from IO, 8 from FMU) |
| Pamięć RAM MCU | 32 Bit Arm ® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM |
| Liczba UART | 5 general purpose serial ports 2 with full flow control 1with separate 1.5A current limit |
| Złącze USB | USB Power Input: 4.75~5.25V |
Sklepy i ceny#
| Sklep | Wariant | Cena |
|---|---|---|
| Holybro | FC Module Only | 181,00 USD |
